User Guide

CampusBridge is a desktop app for managing contacts, optimized for use via a Command Line Interface (CLI) while still having the benefits of a Graphical User Interface (GUI). If you can type fast, CampusBridge can get your contact management tasks done faster than traditional GUI apps.

• Quick start
• Data entry specifications
  • Tag types
  • Email validation
• Features
  • Viewing help : help
  • Adding a person : add
  • Editing a person : edit
  • Deleting a person : delete
  • Tagging a person : tag
  • Untagging a person : untag
  • Clearing all tags of a specific type : cleartag
  • Listing all persons : list
  • Sorting persons : sort
  • Locating persons by name/email/tag : find
  • Undoing the last action : undo
  • Navigating command history
  • Clearing all entries : clear
  • Exiting the program : exit
  • Saving the data
  • Editing the data file
  • Clearing all tags of multiple types [coming in v2.0]
• FAQ
• Known issues
• Command summary
• Keyboard Shortcuts Summary
  • Windows / Linux
  • macOS

Quick start

1. Ensure you have Java 17 or above installed in your Computer.
   Mac users: Ensure you have the precise JDK version prescribed here.

2. Download the latest .jar file from here.

3. Copy the file to the folder you want to use as the home folder for your CampusBridge application.

4. Open a command terminal, cd into the folder you put the jar file in, and use the java -jar CampusBridge-v1.5.jar command to run the application.
   A GUI similar to the below should appear in a few seconds. Note how the app contains some sample data.


5. Type the command in the command box and press Enter to execute it. e.g. typing help and pressing Enter will open the user guide in the browser.
   Some example commands you can try:

   • list : Lists all contacts.

   • add n/John Doe e/johnd@example.com p/98765432 h/johndoe123 : Adds a contact named John Doe to the address book.

   • tag 1 tg/friend : Adds the general tag friend to the 1st contact shown in the current list.

   • find n/John : Finds all contacts whose names contain John.

   • delete i/3 : Deletes the 3rd contact shown in the current list.

   • clear : Deletes all contacts.

   • exit : Exits the app.

6. Refer to the Features below for details of each command.

Data entry specifications

Tag types

CampusBridge supports three tag types, each displayed in a distinct colour:

Tag prefixes:

• tr/ROLE_TAG — creates a Role tag
• tc/COURSE_TAG — creates a Course tag
• tg/GENERAL_TAG — creates a General tag

Tag constraints:

• Tags are case-insensitive — tr/Friends, tr/FRIENDS and tr/friends all refer to the same tag.
• Tag names must be alphanumeric.
  • Only letters A-Z, a-z, and number 0-9 are allowed.
  • Spaces and special characters (e.g @, #, -, !, _) are not allowed.
• Each tag name must be unique within its type — you cannot create two Role tags with the same name, but a Role tag and a General tag can share the same name.

Email validation

Emails should be of the format local-part@domain and adhere to the following constraints:

Local-part:

• Should only contain alphanumeric characters and these special characters: +, _, ., -
• May not start or end with any special characters

Domain:

• Made up of one or more domain labels. If there is more than one domain label, they are separated by periods
• Must end with a domain label at least 2 characters long
• Each domain label must start and end with alphanumeric characters
• Each domain label must consist of alphanumeric characters, separated only by hyphens, if any

Examples:

NUS domain check:

CampusBridge is designed for NUS students and staff. When adding or editing a contact:

Note: Non-NUS emails are still accepted, but a warning will be displayed to alert you that the email does not belong to an NUS domain.

Features

Viewing help : help

Opens the user guide in the browser, and optionally directly to the section for a specific command.

Format: help [COMMAND]

Alternatively, press F1 to open the user guide.

• COMMAND is optional. When provided, it must be a single valid command name (e.g. add, edit).
• If COMMAND is provided, the user guide is opened at the section for that command.
• If COMMAND is not a recognised command name, an error is shown listing all valid commands.
• If more than one word is provided (e.g. help add clear), an invalid command format error is shown.

Examples:

• help — opens the user guide in the browser.

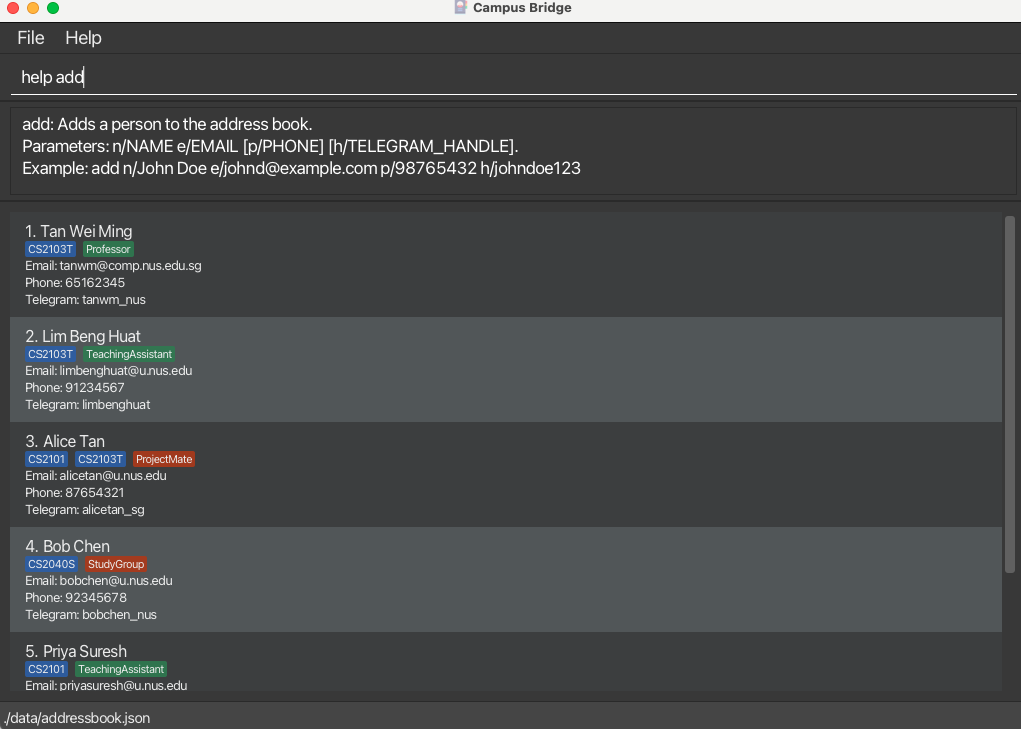

• help add — opens the user guide at the Adding a person section.
• help sort — opens the user guide at the Sorting persons section.

Adding a person : add

Adds a person to the address book.

Format: add n/NAME e/EMAIL [p/PHONE_NUMBER] [h/TELEGRAM_HANDLE]

• n/NAME and e/EMAIL are required.
• p/PHONE_NUMBER and h/TELEGRAM_HANDLE are optional.
• If no phone number is provided, the contact will be created without one.
• If no Telegram handle is provided, the contact will be created without one.
• Email must be unique. You cannot add two persons with the same email address.
• Telegram handle, if provided, must be unique. You cannot add two persons with the same Telegram handle.
• Telegram handles are treated case-insensitively for duplicate detection. For example, handle1 and HANDLE1 are considered the same handle.
• Repeated prefixes for single-valued fields are not allowed. For example, add n/Amy n/Ben e/x@example.com is invalid.
• Prefixes meant for other commands, such as t/, tr/, tc/, tg/, i/, o/, and r/, are invalid in an add command.

Tip: Parameters can be entered in any order, as long as each value is preceded by the correct prefix.

Examples:

• add n/John Doe e/johnd@example.com
• add n/Betsy Crowe e/betsycrowe@example.com p/1234567
• add n/Alex Lim e/alexlim@example.com h/alex_lim123

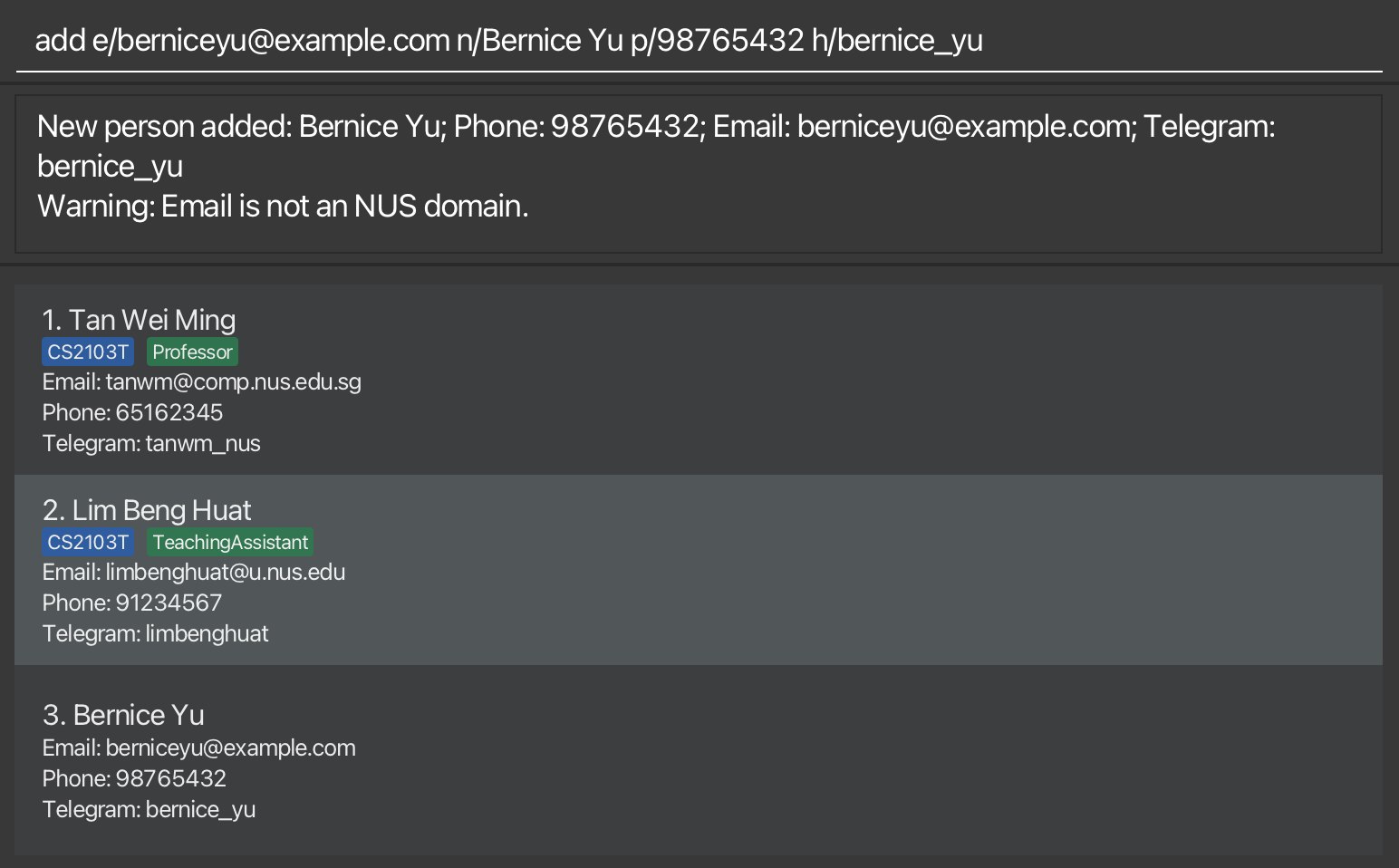

• add e/berniceyu@example.com n/Bernice Yu p/98765432 h/bernice_yu

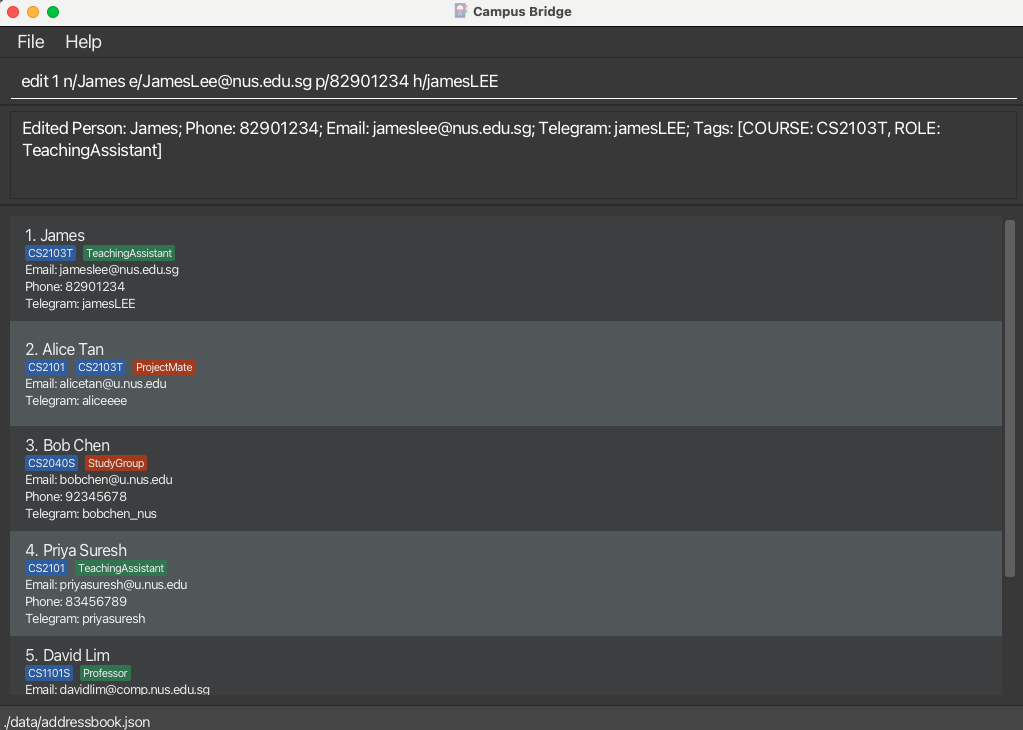

Editing a person : edit

Edits an existing person in the address book.

Format: edit INDEX [n/NAME] [p/PHONE_NUMBER] [e/EMAIL] [h/TELEGRAM_HANDLE]

• Edits the person at the specified INDEX.
• The index refers to the index number shown in the displayed person list.
• The index must be a positive integer 1, 2, 3, …​
• At least one of the optional fields must be provided.
• Existing values will be updated to the input values.
• The updated email and Telegram handle, if provided, must remain unique.
• Telegram handles are treated case-insensitively for duplicate detection. For example, handle1 and HANDLE1 are considered the same handle.

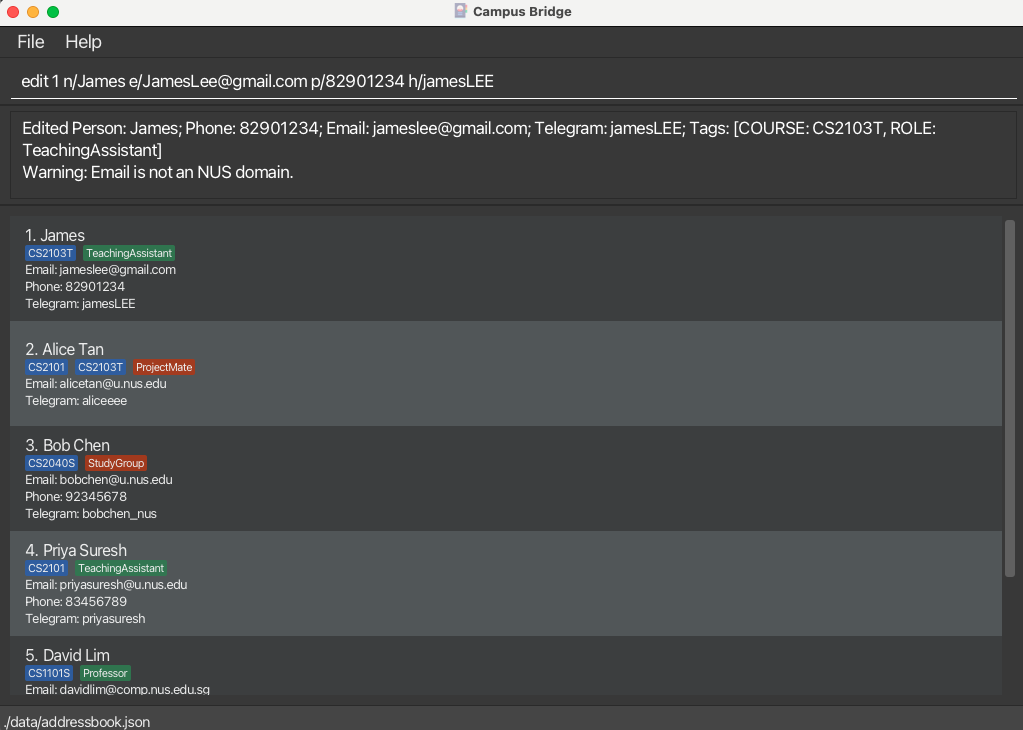

Note: If the updated email is not an NUS domain (@u.nus.edu or @*.nus.edu.sg or @nus.edu.sg), a warning message will be shown. The contact will still be updated.

Examples:

• edit 1 p/91234567 e/johndoe@example.com
  Edits the phone number and email address of the 1st person to be 91234567 and johndoe@example.com respectively.
• edit 2 n/Betsy Crower h/betsyy
  Edits the name of the 2nd person to be Betsy Crower and the telegram handle to be betsyy.

Deleting a person : delete

Deletes the specified person from the address book.

Format:

• delete i/INDEX
  • Deletes the person at the specified INDEX.
  • The index refers to the index number shown in the displayed person list.
  • The index must be a positive integer 1, 2, 3, …​
• delete e/EMAIL
  • Deletes the person with the specified EMAIL.
  • The email refers to the email address of a person shown in the displayed person list.
  • The email must be a valid email address.
  • Email matching is case-insensitive.

Examples:

• Delete by index:

  • list

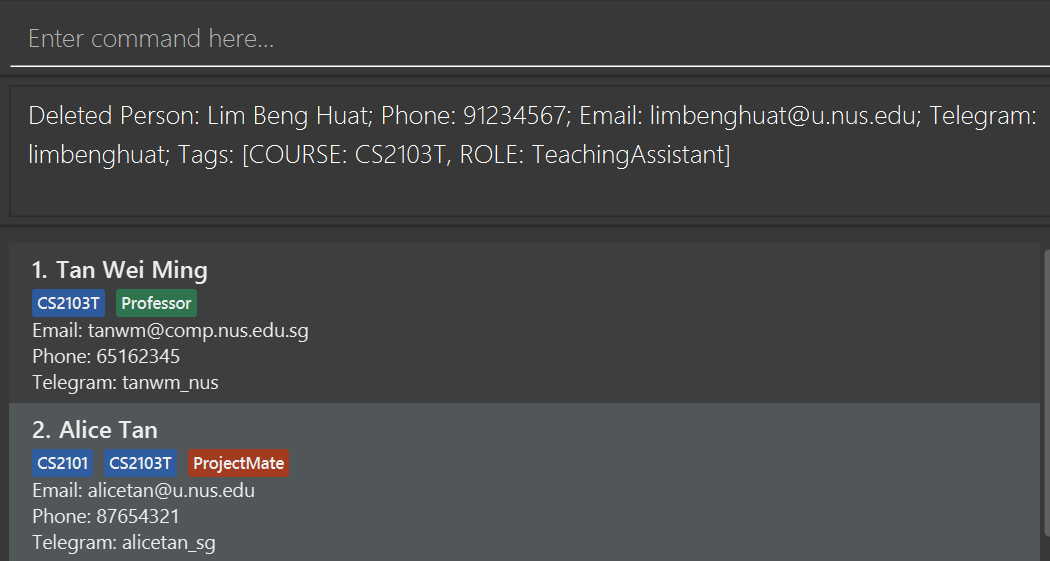

    delete i/2


    Deletes the 2nd person in the address book.

  • find n/Betsy
    delete i/1


    Deletes the 1st person in the results of the find command.

• Delete by email:

  • list
    delete e/betsy@example.com


    Deletes the person with email betsy@example.com in the address book.

  • find n/Betsy
    delete e/BETSY@example.com


    Deletes the person with email BETSY@example.com in the results of the find command (case-insensitive match also works).

Tagging a person : tag

Adds one or more tags to an existing person in the address book.

Format: tag INDEX [tr/ROLE_TAG]…​ [tc/COURSE_TAG]…​ [tg/GENERAL_TAG]…​

• The index must be a positive integer 1, 2, 3, …​
• Tag names must be alphanumeric (no spaces or special characters).
• At least one of the optional fields must be provided.
• Each tag must have a value after its prefix (e.g. tg/ alone is not allowed).
• Multiple tags (of different or same types) can be added in a single command.

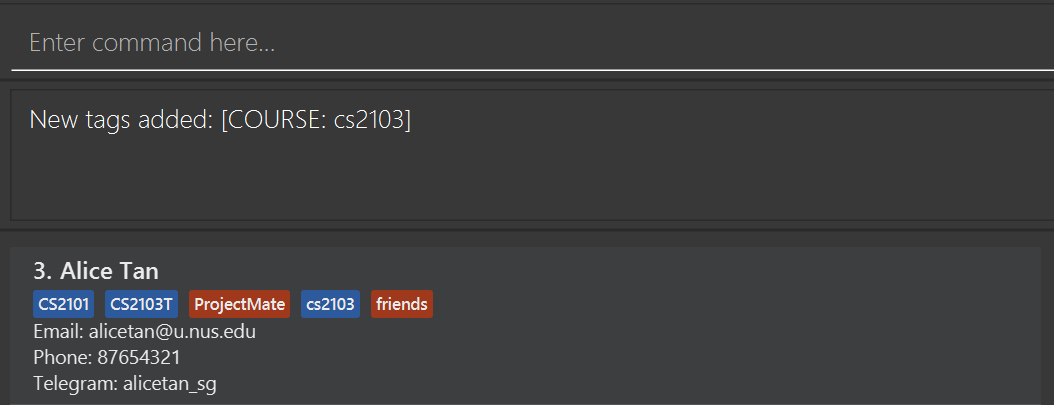

• Duplicate tags in the command will be ignored.

Behavior:

• Adds tags to the person at the specified INDEX.
• The index refers to the index number shown in the displayed person list.
• Existing tags will be preserved. New tags are appended.
• Tag matching is case-insensitive. (e.g. friends and FRIENDS are considered the same).
• If some tags already exist, only new ones are added. A message will show which tags were added and skipped.
• If all tags already exist, an error message will be shown and no changes will be made.

Tip: Obtain the index by using: list command to display all persons or find command to filter the persons.

Examples:

• tag 1 tg/friends
  Adds the friends general tag to the 1st person in the displayed list.

• tag 2 tr/tutor tc/cs2103 tg/helpful
  Adds the tutor role tag, cs2103 course tag and helpful general tag to the 2nd person in the displayed list.

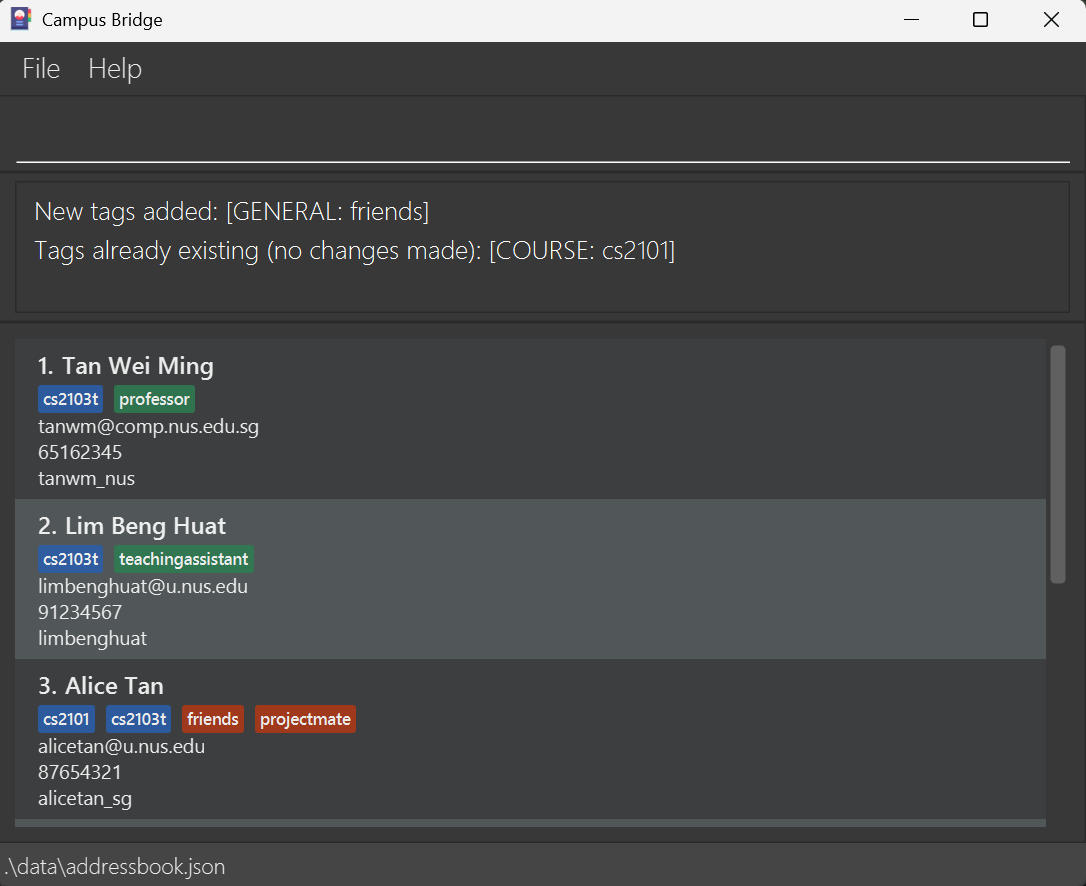

• tag 3 tc/cs2101 tg/friends
  Adds the friends general tag to the 3rd person in the displayed list and shows cs2101 course tag already exists.

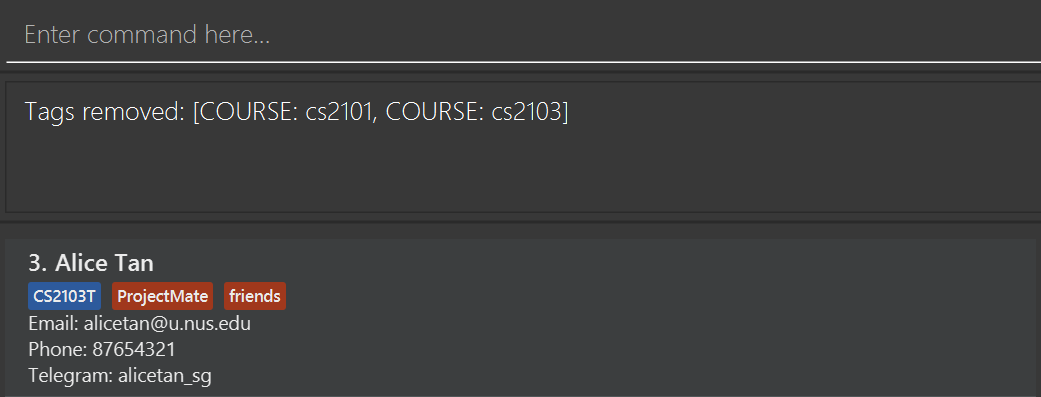

Untagging a person : untag

Removes one or more tags from an existing person in the address book.

Format: untag INDEX [tr/ROLE_TAG]…​ [tc/COURSE_TAG]…​ [tg/GENERAL_TAG]…​

• The index must be a positive integer 1, 2, 3, …​
• Tag names must be alphanumeric (no spaces or special characters).
• At least one of the optional fields must be provided.
• Each tag must have a value after its prefix (e.g. tg/ alone is not allowed).
• Multiple tags (of different or same types) can be removed in a single command.
• Duplicate tags in the command will be ignored.

Behavior:

• Removes the specified tags from the person at the given INDEX.
• The index refers to the index number shown in the displayed person list.
• Only tags currently assigned to the person will be removed.
• Existing tags that are not specified will remain unchanged.
• Tag matching is case-insensitive. e.g. friends and FRIENDS are considered the same.
• If some tags exist and others don’t, the existing ones will be removed. A message will show which tags were not found.
• If none of the specified tags exist, an error message will be shown and no changes will be made.

Tip: Obtain the index by using: list command to display all persons or find command to filter the persons.

Examples:

• untag 1 tg/friends
  Removes the friends general tag from the 1st person in the list.

• untag 2 tr/tutor tc/cs2103 tg/classmates
  Removes the tutor role tag, cs2103 course tag and classmates general tag from the 2nd person in the list.

• untag 3 tc/cs2103 tc/cs2109
  Removes both cs2103 and cs2109 course tags from the 3rd person in the list.

Clearing all tags of a specific type : cleartag

Clears all tags of a specific type from an existing person in the address book.

Format: cleartag INDEX tr/ or cleartag INDEX tc/ or cleartag INDEX tg/

• The index must be a positive integer 1, 2, 3, …​
• Exactly one tag type prefix must be provided (without any tag names).

Behavior:

• Clears all tags of the specified type from the person at the given INDEX.
• The index refers to the index number shown in the displayed person list.
• Only one tag type can be cleared at a time.
• Only tags of the specified type will be removed. Tags of other types remain unchanged.
• If the person has no tags of the specified type, an error message will be shown.

Tip: Obtain the index by using: list command to display all persons or find command to filter the persons.

Examples:

• cleartag 1 tg/
  Clears all general tags from the 1st person in the displayed list.

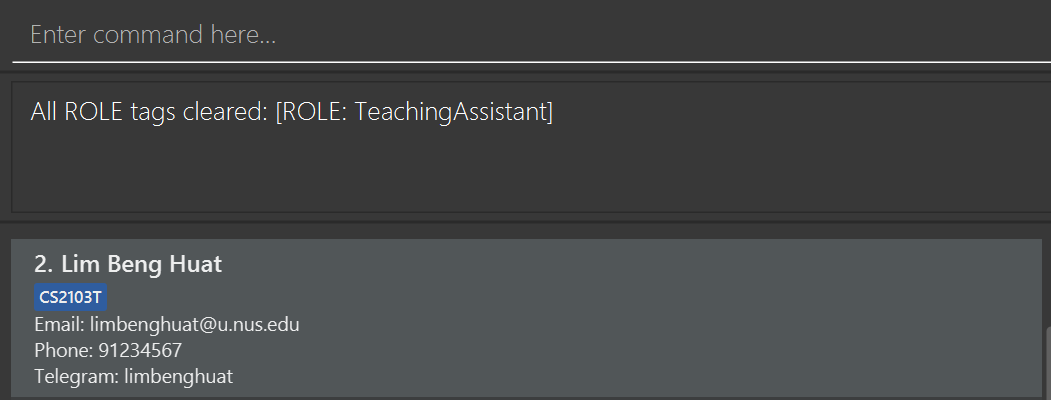

• cleartag 2 tr/
  Clears all role tags from the 2nd person in the displayed list.

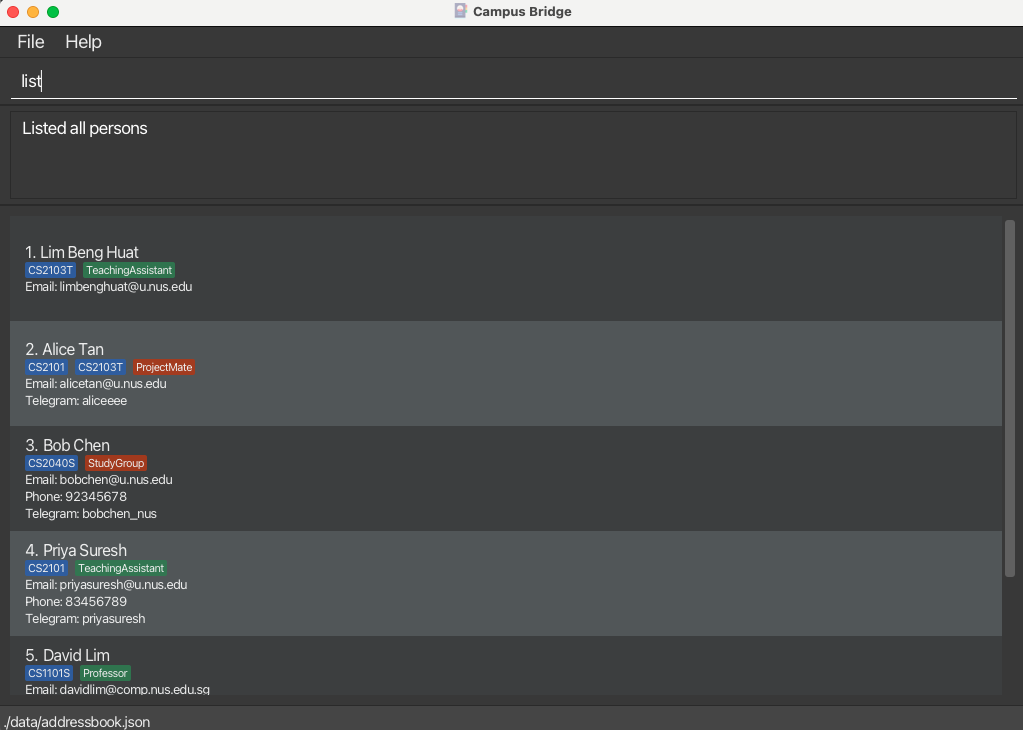

Listing all persons : list

Shows a list of all persons in the address book.

Format: list

Alternatively, press F2 to list all contacts.

Sorting persons : sort

Sorts the list of persons by the specified field.

Format: sort o/ORDER [r/]

• ORDER is case-insensitive. e.g. NAME is treated the same as name
• The r/ flag is optional. When included, the sort order is reversed.
• r/ cannot be used with o/none.

Sort fields:

• name — sorts persons alphabetically by name. e.g. sort o/name produces Alice, Bob, Charlie
• email — sorts persons alphabetically by email address. e.g. sort o/email produces alice@example.com, bob@example.com
• phone — sorts persons lexicographically by phone number. Persons without a phone number appear last. e.g. sort o/phone produces 81234567, 91234567, then persons with no phone
• none — resets the list to its default (insertion) order.

Examples:

• sort o/name
  Sorts all persons alphabetically by name (A–Z).

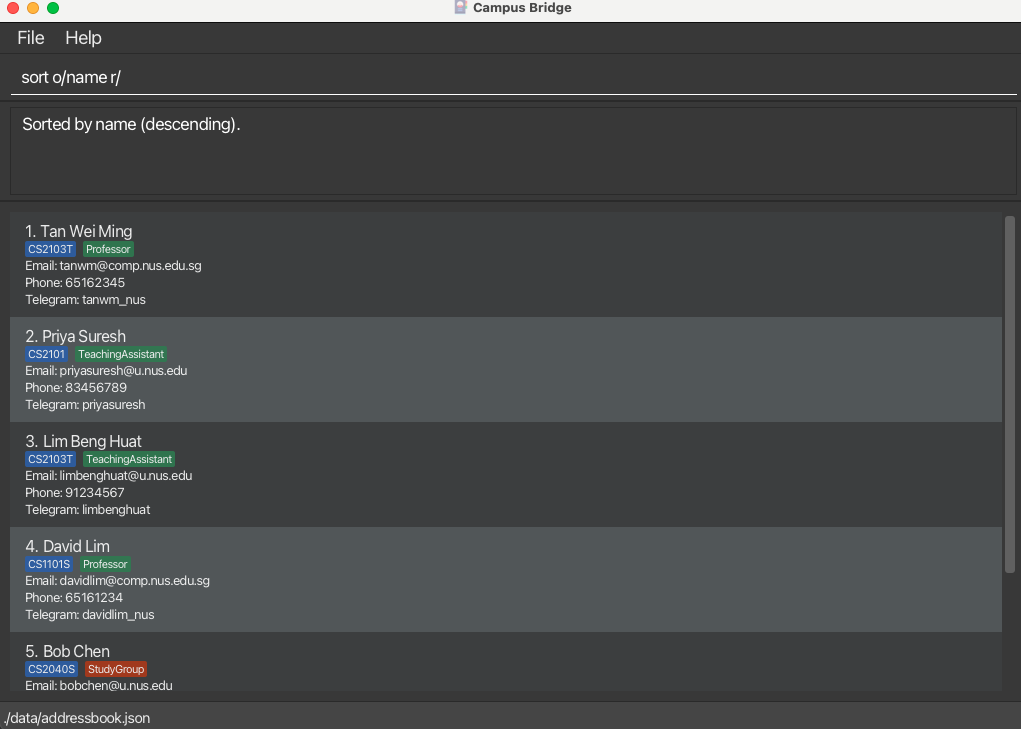

• sort o/name r/
  Sorts all persons in reverse alphabetical order by name (Z–A).

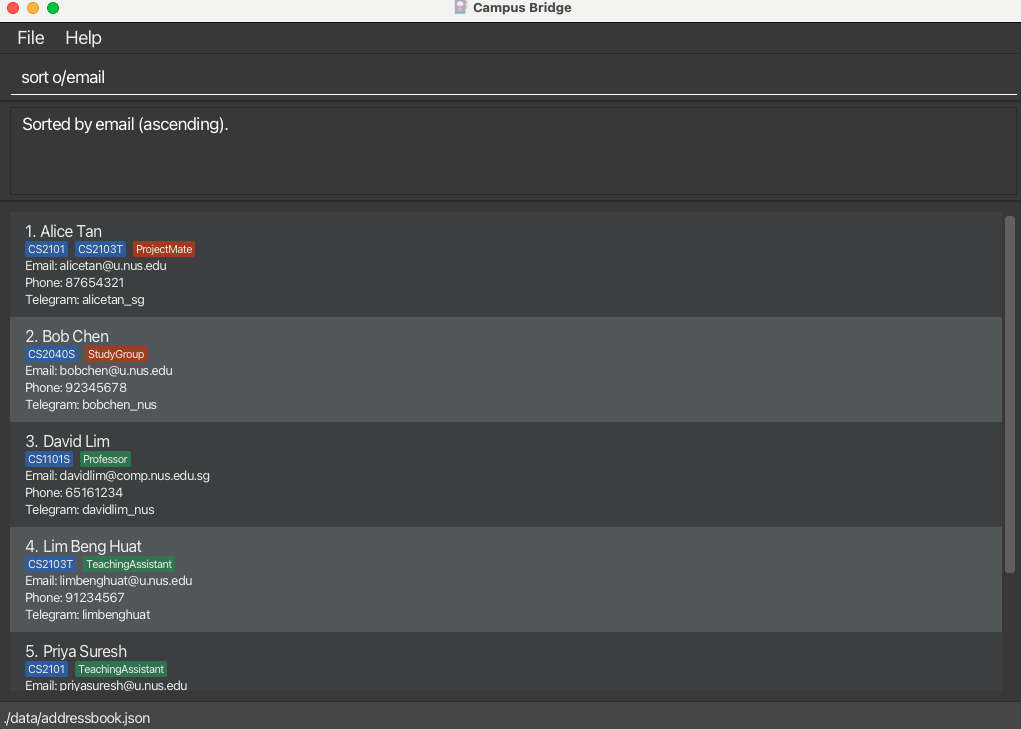

• sort o/email
  Sorts all persons alphabetically by email address.

• sort o/phone r/
  Sorts all persons in reverse lexicographic order by phone number.

• sort o/none
  Resets the list to its default order.

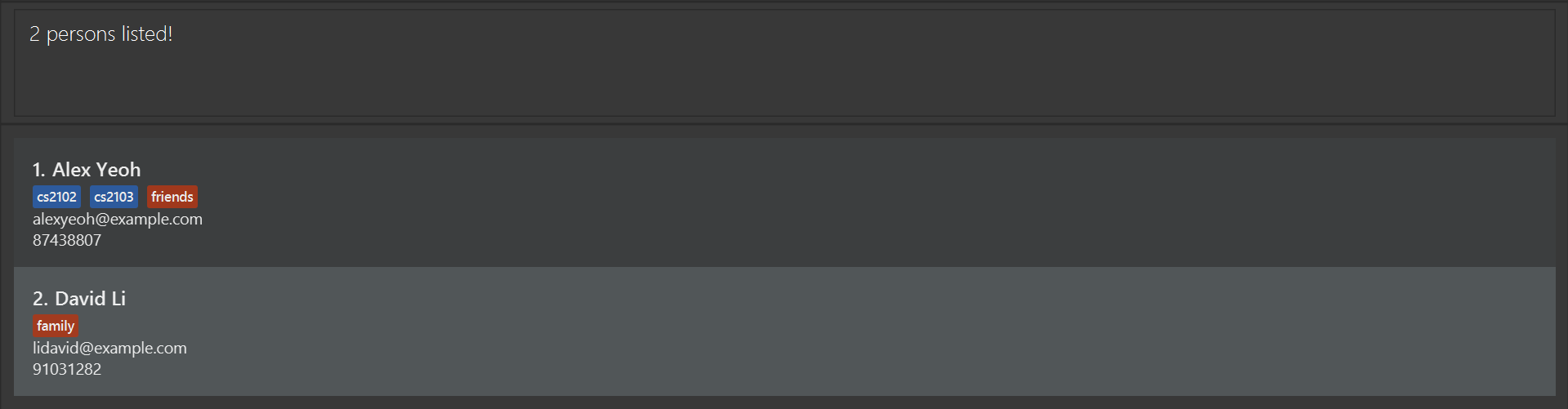

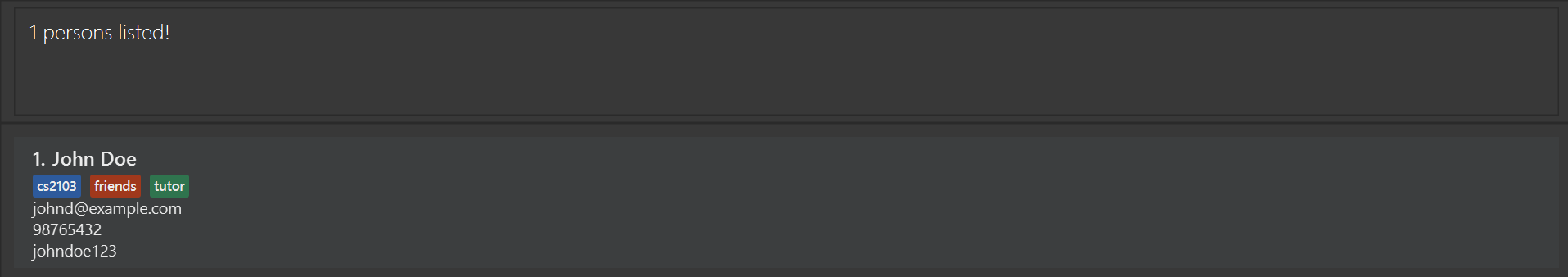

Locating persons by name/email/tag : find

Finds persons whose names, emails, or tags match the given keywords.

Format: find [n/NAME [MORE_NAMES]] [e/EMAIL [MORE_EMAILS]] [t/TAG [MORE_TAGS]]

• At least one of n/, e/, or t/ must be present.
• The search is case-insensitive for all fields. e.g. alex will match Alex.
• The order of keywords does not matter. e.g. Yeoh Alex will match Alex Yeoh.
• Keywords consisting only of special characters are not allowed (e.g., ., #, !@#). If you provide such a keyword, an error message will be shown.
• Keywords containing both letters and special characters are valid (e.g., "Dr.", "J."), but special characters are ignored during name processing.

Matching behavior:

• Name keywords use both exact substring matching and fuzzy matching (typo-tolerant):
  • Exact match: Jo will match John and Alice Johnson.
  • Fuzzy match: jon will also match John (handles typos like missing or swapped letters).
  • The fuzzy matching threshold is calculated based on keyword length, allowing ~1 edit for short keywords and scaling up for longer keywords.
  • Special characters in names are ignored during processing. e.g. searching for "Robert" will match names like "Robert-Smith" or "O'Robert".
• Email keywords use exact substring matching. e.g. gmail will match john@gmail.com and alice.gmail@example.com.
• Tags use exact matching. e.g. cs2103 will match tag cs2103 but not cs210.
• Multiple keywords within the same field are combined using OR. e.g. n/Alex David will match Alex Yeoh or David Li.
• Different fields are combined using AND. e.g. n/Alex e/gmail will match persons whose name matches Alex and email contains gmail.
• Repeated same-field prefixes are allowed. e.g. find n/Alex n/David behaves the same as find n/Alex David.
• Empty prefixes are not allowed. e.g. find n/Alex e/ is invalid.

Examples:

• find n/John
  Returns all persons whose names match John (with fuzzy matching support).

• find n/jon
  Returns all persons whose names match jon (with fuzzy matching support).

• find n/alice david
  Returns persons whose name matches alice or david (with fuzzy matching support).

• find e/gmail
  Returns all persons whose emails contain gmail.

• find t/friends
  Returns all persons tagged with friends.

• find n/alex e/u.nus.edu
  Returns persons whose name matches alex and email contains u.nus.edu.

• find n/alex t/friends
  Returns persons whose name matches alex and are tagged with friends.

• find n/alex e/nus t/friends
  Returns persons whose name matches alex and email contains nus and are tagged with friends.

• find n/alex david
  Returns persons whose name matches alex or david.

Undoing the last action : undo

Reverts the most recent undoable command executed.

Format: undo

• Undoes the last executed command that supports undo.
• Multiple undo operations can be performed consecutively, up to the number of undoable commands previously executed.
• If there are no commands to undo, an error message will be shown.

Undoable commands:

add
delete
edit
clear
tag
untag
cleartag

Commands that are not listed above cannot be undone.

Tip: You can repeatedly use undo to step backwards through your previous changes.

Examples:

• add n/John Doe e/john@example.com
  undo


  Reverts the addition of John Doe.

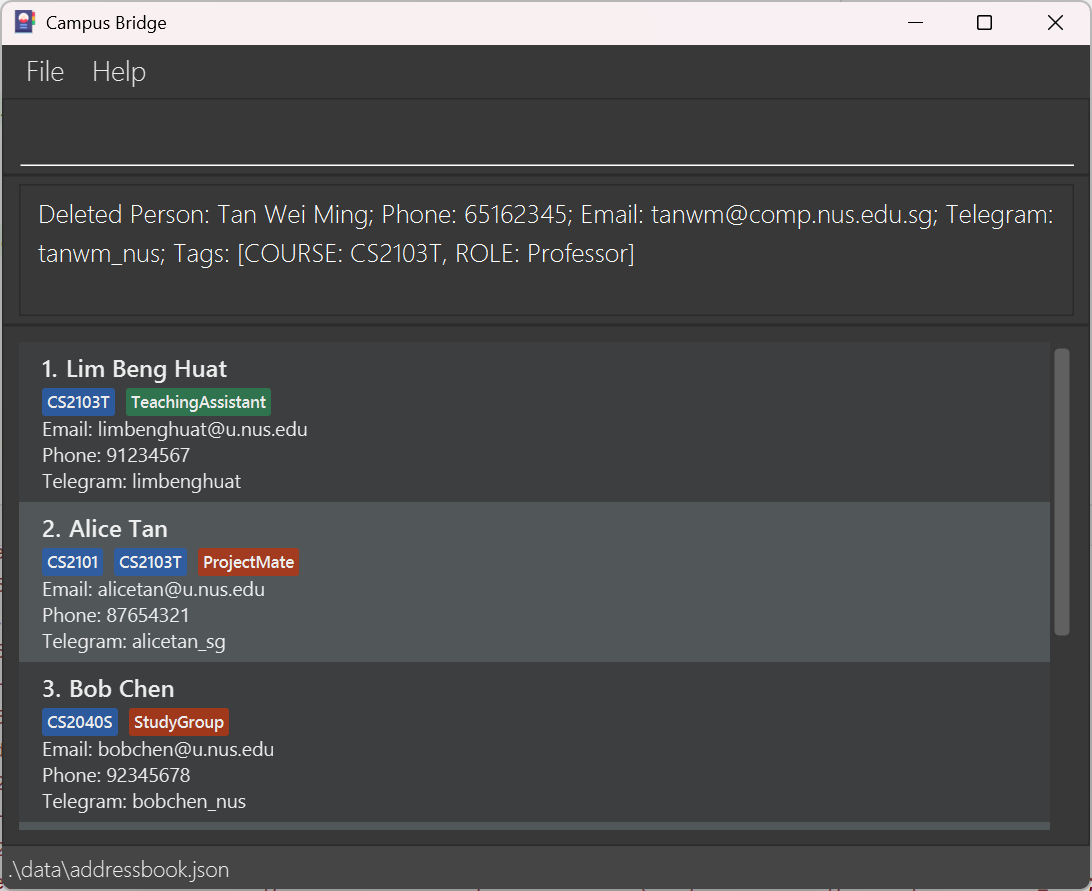

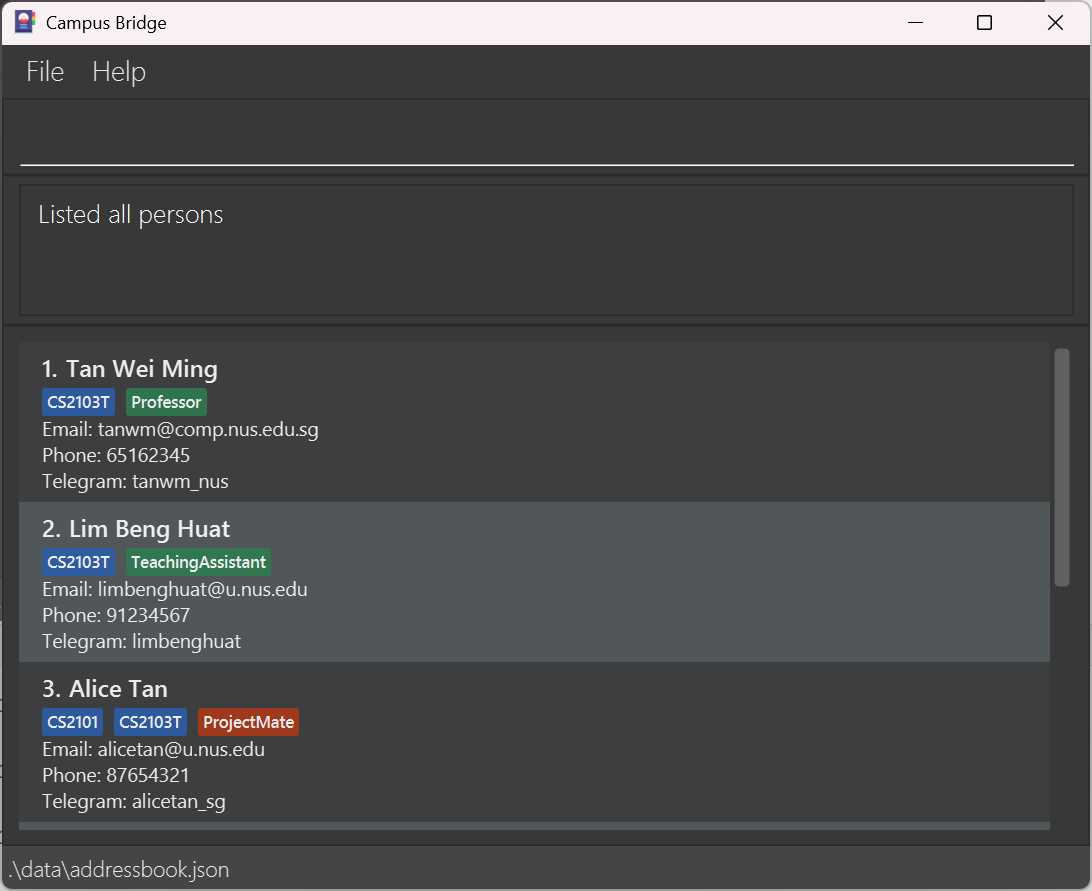

• delete i/2

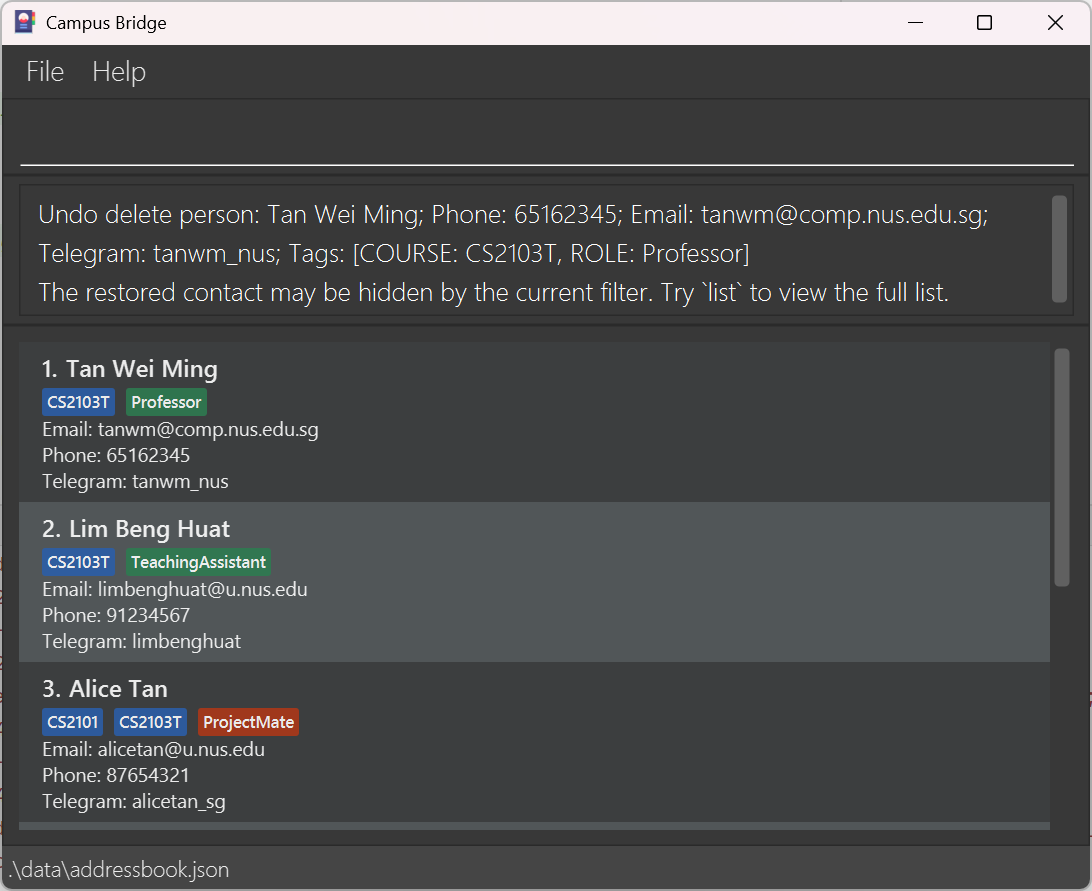

  undo


  Restores the previously deleted person.

• edit 1 n/Alex Tan
  undo


  Restores the original details of the 1st person.

• clear
  undo


  Restores all previously deleted contacts.

• undo


  When no more commands to undo, an error message will be shown indicating that there are no actions to undo.

Navigating command history

Previously entered commands can be recalled using the keyboard.

• Press the Up arrow key to go back to an earlier command.
• Press the Down arrow key to go forward to a more recent command.

Examples:

• After running add n/John Doe e/john@example.com, press Up to recall it and modify it.
• After running several commands, press Up repeatedly to scroll back through them.

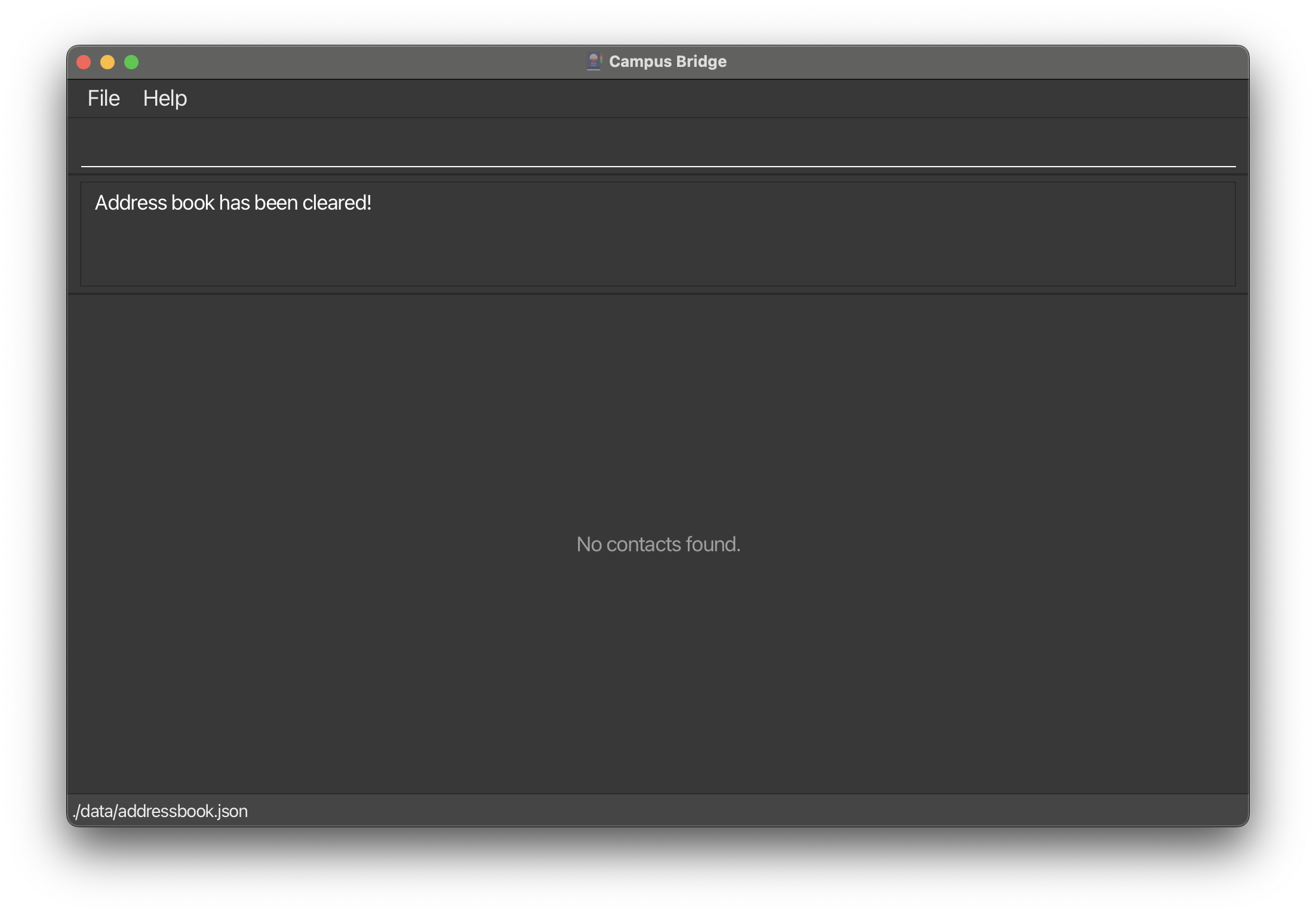

Clearing all entries : clear

Clears all entries from the address book.

Format: clear

Exiting the program : exit

Exits the program.

Format: exit

Alternatively, press F3 to exit the application.

Saving the data

CampusBridge data are saved in the hard disk automatically after any command that changes the data. There is no need to save manually.

Editing the data file

CampusBridge data are saved automatically as a JSON file [JAR file location]/data/addressbook.json. Advanced users are welcome to update data directly by editing that data file.

Caution: If your changes to the data file makes its format invalid, CampusBridge will discard all data and start with an empty data file at the next run. Hence, it is recommended to take a backup of the file before editing it.
Furthermore, certain edits can cause CampusBridge to behave in unexpected ways (e.g., if a value entered is outside of the acceptable range). Therefore, edit the data file only if you are confident that you can update it correctly.

Clearing all tags of multiple types [coming in v2.0]

Details coming soon …

FAQ

Q: How do I transfer my data to another Computer?
A: Install the app in the other computer and overwrite the empty data file it creates with the file that contains the data of your previous CampusBridge home folder.

Q: What happens to my data when I upgrade from v1.3 to v1.4?
A: CampusBridge v1.4 uses an updated storage format that may not be compatible with older versions. If your existing data cannot be read, the app will start with an empty data file. Back up your data/addressbook.json before upgrading.

Known issues

1. When using multiple screens, if you move the application to a secondary screen, and later switch to using only the primary screen, the GUI will open off-screen. The remedy is to delete the preferences.json file created by the application before running the application again.

Command summary

Keyboard Shortcuts Summary

Windows / Linux

macOS
